Yarn Spinner

Overview

Yarn Spinner is a dialogue-control system with related tools that works for Unity and Godot.

For me, the main benefit steering me toward tooling like this is ergonomics. With Skeleseller, we had an unwieldy system to add new text (it was roughly one class per line of dialogue 😳). With Yarn Spinner, you can separate your dialogue from your code. This is nice for iterating on dialogue without having to rebuild.

It’s also nice not to have to make everything from scratch. 🙂

Links:

• Browser playground for dialogue
  • This is really useful for testing .yarn scripts
  • Scripting reference
• GitHub
  • Centralized issue repo
    • They have several other repos (see below), but they use this one to consolidate any issues that show up.
  • Core Yarn Spinner project
    • This is engine-agnostic. It contains the VM code.
  • Godot - C# GitHub repo
    • Docs - this is the only Godot-specific section, so you can’t just search for things or you’ll find the Unity equivalents.
  • Godot - GDScript GitHub repo
• VSCode extension - this is apparently pretty helpful, but I haven’t tried it yet myself

Alternatives:

• Dialogue Manager
• Dialogic 2 - C# is supported but this was coded in GDScript

Setup

• Follow these instructions. They’re easy to follow but involve some non-standard steps like modifying your .csproj file.
  • Updating the library is the same; just clone from GitHub and copy into your project.
• I personally don’t need YSLS files (presumably “Yarn Spinner Language Server”) as mentioned in this release, so I disabled it with YARN_SOURCE_GENERATION_DISABLE_YSLS in my .csproj file. The presence of the YSLS files annoyed me because changes to my code would trigger changes in that file (so that Yarn Spinner knows which functions I was using).

Script language reference (reference)

• Disabling an option: add <<if false>> at the end of it, e.g. -> Yes <<if false>>
  • Note: Yarn Spinner calls this an “unavailable” option and you can choose to show it or not in your OptionsPresenter.
• Hiding an option: wrap the whole thing in <<if false>> and <<endif>>

Setting and getting variables from code

// Setting
yourDialogueRunner.VariableStorage.SetValue("$has_key", true);

// Getting
yourDialogueRunner.VariableStorage.TryGetValue<bool>("$has_key", out var b))

Conditionally hiding and disabling

Yarn Spinner only has the option out of the box to mark an option “unavailable”, then you can decide whether that means hidden or disabled. If you want both at once within a set of options, then you can use metadata to look up a variable at runtime.

E.g. here’s a script in which the first option always shows, but the second one is both conditionally disabled and conditionally hidden:

title: BeforeGoingToCommunityCenter
---
    -> Let's go
        <<jump GoToCommunityCenter>>
    -> Wait... <<if $has_chosen_wait == false>> #hideIf:has_chosen_scary
        <<jump WaitBeforeGoing>>
===

How to accomplish this:

• Make a custom OptionsPresenter
• In RunOptionsAsync, add code like this:

public async YarnTask<DialogueOption?> RunOptionsAsync(DialogueOption[] dialogueOptions,
    CancellationToken cancellationToken)
{
  // (lines omitted for brevity)
  optionView.Visible = !ShouldForceHide(option);
  // (lines omitted for brevity)
}

private bool ShouldForceHide(DialogueOption option)
{
    foreach (var tag in option.Line.Metadata)
    {
        if (!tag.StartsWith(HideIfTagPrefix, StringComparison.InvariantCulture))
        {
            continue;
        }

        var varName = $"${tag[HideIfTagPrefix.Length..]}";

        if (_dialogueRunner.VariableStorage.TryGetValue<bool>(varName, out var b))
        {
            return b;
        }

        return false;
    }

    return false;
}

LinePresenter

If you want to listen to events (e.g. OnPrepareForLine, OnCharacterWillAppear), they’re implemented as function calls instead of delegates or signals.

• Make a new class that inherits from ActionMarkupHandler
• Fill out any functions that you’re interested in.
• Click your LinePresenter in Godot and change eventHandlers to include your class.

Conditionally hiding characterNameContainer

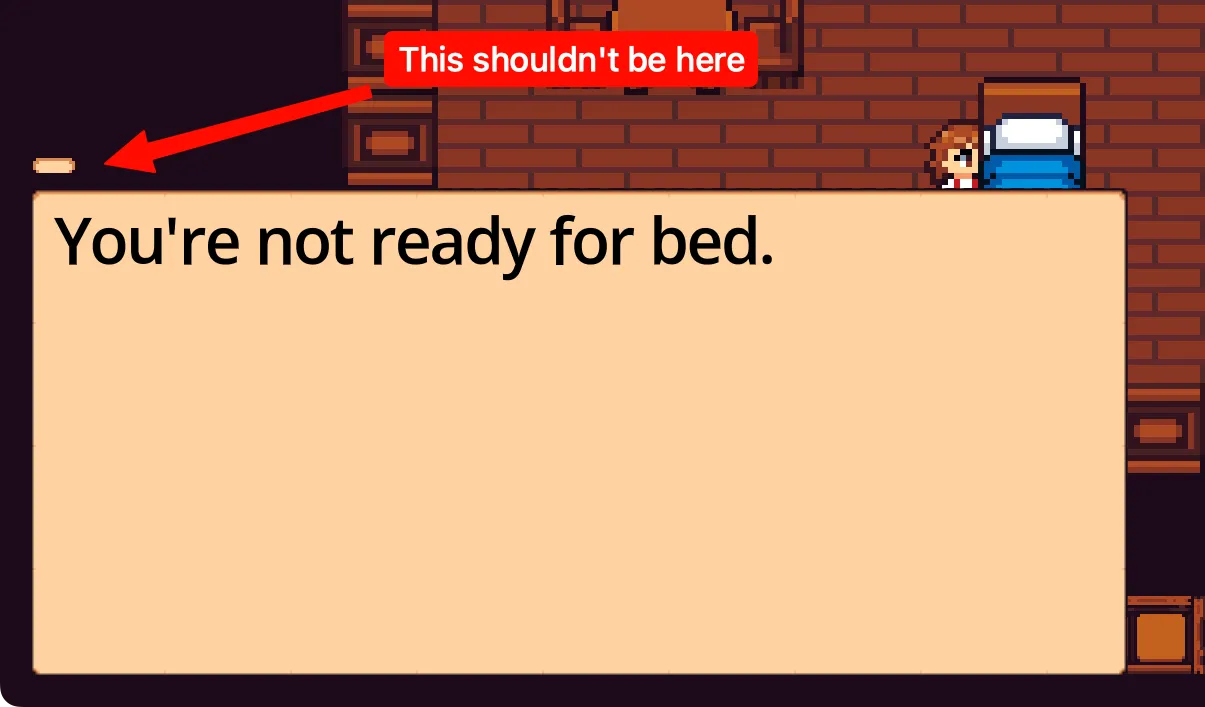

E.g. in this image, you can see a PanelContainer that shouldn’t be there since there’s no character name for the bed text: Fixing this is pretty easy:

• Make your own LinePresenter with this code:

  public partial class LinePresenterConditionallyHidingCharacterNameContainer : Node, DialoguePresenterBase
  {
      [Export] public CanvasItem characterNameContainer;
      public List<IActionMarkupHandler> ActionMarkupHandlers { get; }

      public async YarnTask RunLineAsync(LocalizedLine line, LineCancellationToken token)
      {
          characterNameContainer.Visible = line.CharacterName is not null;
      }
  }

• Set the characterNameContainer in your LinePresenter in Godot
• Have your DialogueRunner point to the new LinePresenter

OptionsPresenter

The option navigation is coded using Godot’s focus order, which is automatic.

There are no events or way to detect that you’ve selected a particular option like there are for LinePresenter. If you want this behavior, here’s what Claude suggested:

• Option 1: Custom presenter (C#)
  • Create a class implementing DialoguePresenterBase and override RunOptionsAsync. It gets called the moment options are ready:

  public override async YarnTask<DialogueOption?> RunOptionsAsync(
      DialogueOption[] dialogueOptions, CancellationToken cancellationToken)
  {
      // Options are now visible — do your detection here
      EmitSignal(SignalName.OptionsPresented, dialogueOptions.Length);
      return null; // return null to let another presenter handle actual selection
  }

  • Add it to the dialoguePresenters array alongside your existing OptionsPresenter.
• Option 2: Subclass OptionsPresenter
  • Override RunOptionsAsync in a subclass, call base.RunOptionsAsync(...) for the actual UI, and add your detection logic before or after.

Performance

• Turn off YarnSpinnerGodot.BasicTypewriter.ConvertHTMLToBBCodeIfConfigured (it’s on LinePresenter as an exported checkmark) and prefer BBCode instead. That function alone on a single script took ~12ms, and it runs for each line of dialogue with no caching.
• There’s a pretty intense start-up cost for showing your first dialogue in the game. E.g. if you just make a new project with this code and any dummy dialogue:

  public override void _PhysicsProcess(double delta)
  {
      float speed = 150f;
      if (Input.IsActionPressed("ui_accept"))
      {
          _sprite.Position += Vector2.Right * speed * (float)delta;
      }

      if (_sprite.Position.X > 200 && !_started)
      {
          _started = true;
          _ = _runner.StartDialogue("Start");
      }
  }

  • …you’ll see an obvious delay as the sprite is moving right.
  • I think the best solution is to do something like this during a loading screen:

  private async Task SetUpDialogueRunner()
  {
      _runner = GetNode<DialogueRunner>("%DialogueRunner");
      var yarnSpinnerCanvasLayer = GetNode<CanvasLayer>("%YarnSpinnerCanvasLayer");
      yarnSpinnerCanvasLayer.Hide();

      await _runner.StartDialogue("Start");
      await _runner.Stop();

      _runner.onDialogueStart += OnDialogueStart;
      _runner.onDialogueComplete += OnDialogueComplete;

      // Wait for the fade out to finish
      await ToSignal(GetTree().CreateTimer(0.5f), SceneTreeTimer.SignalName.Timeout);
      yarnSpinnerCanvasLayer.Show();
  }

Localization

General localization notes

• Yarn Spinner exports multiple Yarn scripts (e.g. town.yarn and dungeon.yarn) to the same CSV file. This is why file is a column within the CSV, that way you can tell where a line came from.
• Yarn Spinner is smart enough to strip out if statements from choices. E.g. -> Any ideas how to escape? <<if $has_chosen_escape == false>> #line:015bcdb will show up in your translation file as “Any ideas how to escape?”
• When you inspect a .yarnproject in Godot’s Inspector, you’ll see an “Update Localizations” button. Clicking this will generate CSV files and also .translation files, which are used by Godot (reference).
  • You must add the .translation files via Project → Project Settings → Localization → Translations for your project to use them.
    • If you want to test out a particular language, follow these Godot instructions.

• You can make your own #line tags, but I’m sticking to the randomly generated ones so that I don’t need to craft special names for all of them. On Weblate, the English string will show next to the text input for translation anyway if you set up a base language for your monolingual component.

.csv → .po

Yarn Spinner only generates .csv files, so for Stuck in a Broken Tutorial, we convert them to .pot and .po files with a custom tool (I had AI write it) so that Weblate will work with them (monolingual gettext is only for .po files (reference)). The English is pulled directly from the .yarn file into en_US.po, that way you can still edit .yarn files directly without having a bunch of meaningless identifiers or needing a tool to translate to and from the identifiers.

Yarn Spinner generates .translation files when you update .csvs. We don’t need those files because we convert to .po for the sake of Weblate, and Godot can use .po files directly, so we just .gitignore them.

Plurals and gender

• Plurals: there’s a built-in plural mark-up, e.g. PieMaker: I just baked [plural value={$pie_count} one="a pie" other="% pies" /]!. However, this will require your translators to respect this mark-up for translated text. IMO, unless you have tons of plurals in your game, you probably shouldn’t try to write any sort of convenience layer to convert to/from, say, .po files’ msgid_plural format (reference).
• Gender: you have a couple of options:
  • Use select markup, e.g. I think [select value={$gender} m="he" f="she" nb="they" /] will be there!
    • Like plurals, this would require your translators to respect the mark-up.
  • Wrap in if statements:

    <<if $is_masculine == 1>>
      He did it!
    <<else>>
      She did it!
    <<endif>>

    • Your translators could just type plain language with no mark-up.
